Heavy cutting with high load, fixed-angle index rotary table

2019-10-08


Heavy load rotary table

With dual gear transmission design, it features heavy load capacity and auto rotation to 4 angles. (0, 90, 180, 270 degree).
Clamping force can be assured by strong hydraulic system. Accuracy and stability can also be assured during heavy cutting.

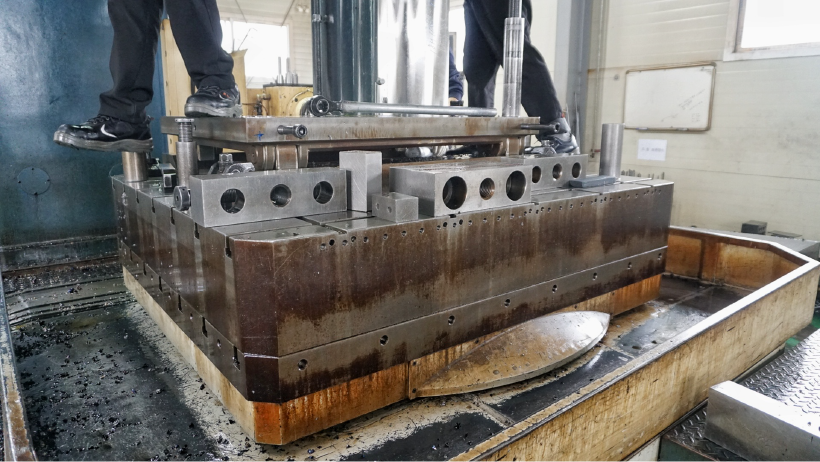

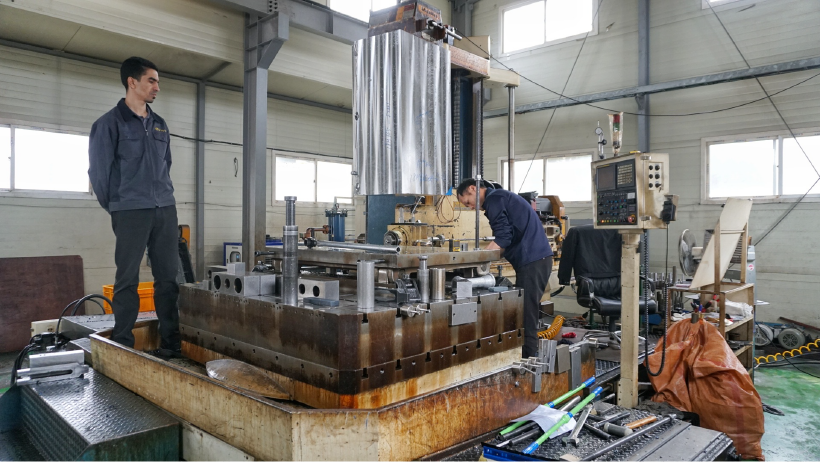

Besides, it can bear work piece eccentric load on the range of 200mm outside outer dia. 200mm. It has accuracy performance of excellent workpiece eccentric load.





Pallet dimension:
- 1600 x 1400 mm - maximal load 8 t
- 1600 x 1800 mm - maximal load 15 t
- 1800 x 2000 mm - maximal load 20 t
- 2000 x 2500 mm - maximal load 30 t
- 3000 x 3500 mm - maximal load 40 t
- 4000 x 4500 mm - maximal load 60 t
